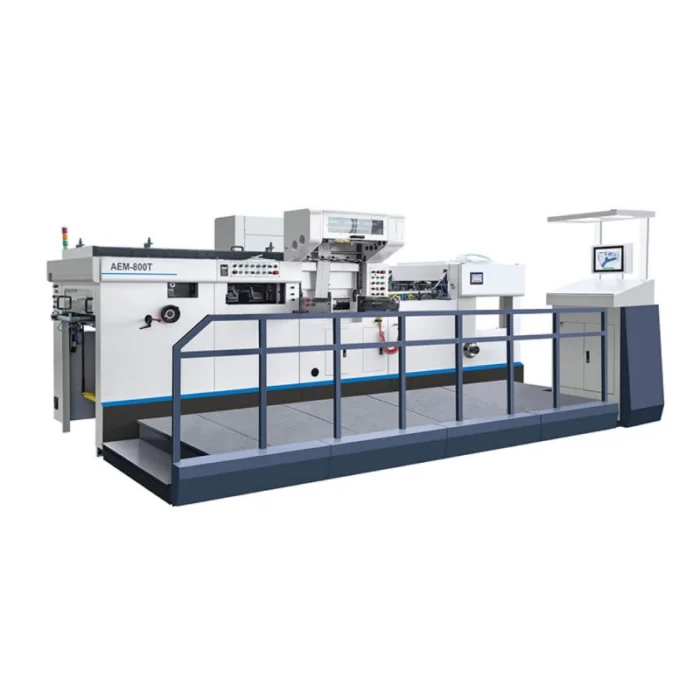

AEM-800T Automatic Hot Stamping and Die Cutting Machine

AEM-800T Automatic Hot Stamping and Die Cutting Machine is engineered to meet the demands of modern packaging production. With its advanced features, it ensures high-speed operation, precise cutting, and reliable hot stamping for various materials, including cardboard, corrugated board, PVC, and PP.

Key Features:

• Versatile Processing: Handles die-cutting, creasing, hot stamping, and embossing in one machine.
• High Precision: Cutting accuracy up to 0.1 mm and stamping precision up to 0.125 mm.
• Advanced Control System: Equipped with a PLC touch-screen interface for intuitive operation and quick adjustments.
• Efficient Heating: Features 8 independent heating zones with adjustable temperatures ranging from 50C to 199C.
• Robust Construction: Built with durable materials to withstand continuous industrial use.
  Technical Specifications:

  Specification	Details
  Model	AEM-800T
  Max Paper Size	820 * 620 mm
  Min Paper Size	340 * 280 mm
  Max Cutting Size	770 * 600 mm
  Die Frame Inner Size	820 * 628 mm
  Cutting Plate Size	826 * 628 mm
  Max Stamping Size	780 * 600 mm
  Min Gripper Edge Size	7 mm
  Cutting Precision	0.1 mm
  Stamping Precision	0.125 mm
  Max Cutting Pressure	200 T
  Max Cutting Speed	7000 sheets/hour
  Max Stamping Speed	6500 sheets/hour
  Max Foil Roll Diameter	250 mm
  Horizontal Foil Width	15*600 mm
  Vertical Foil Width	15*780 mm
  Heating Zones	8 zones
  Temperature Range	50-199C
  Pre-stacking Height	1150 mm
  Delivery Stack Height	1000 mm
  Material Thickness	0.1-2 mm (whiteboard), <4 mm (corrugated)
  Main Motor Power	11 kW
  Heating Power	16 kW
  Total Power	43.5 kW
  Machine Weight	10 T
  Machine Dimensions	6510 * 3300 * 1690 mm
