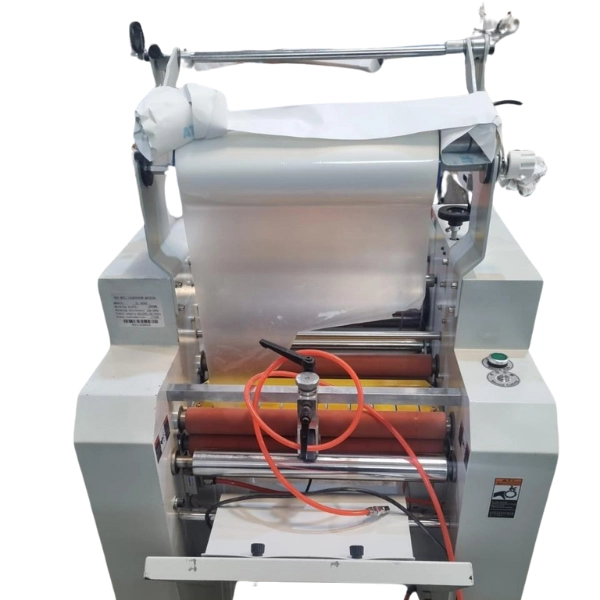

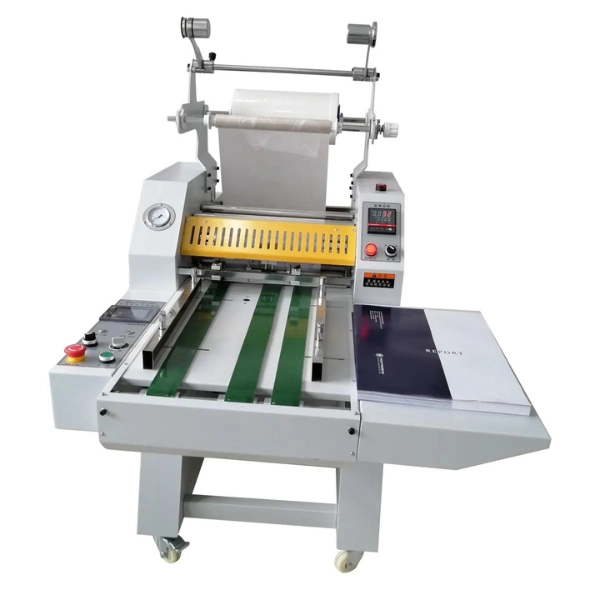

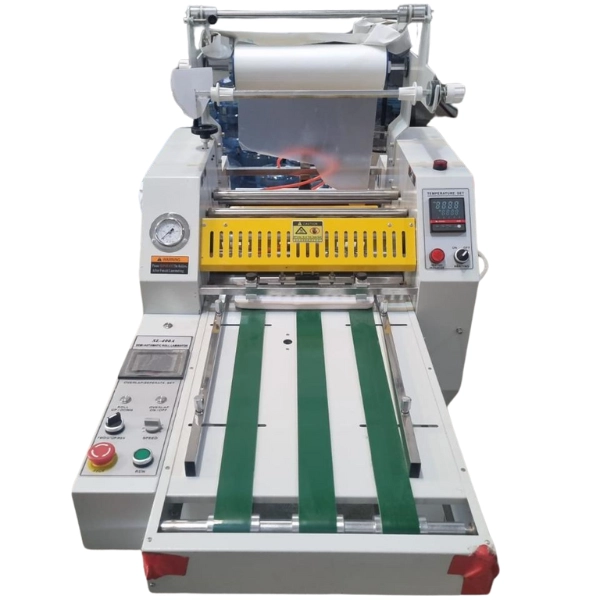

Befitter SL-400A Laminating Machines

Befitter SL-400A is a state-of-the-art semi-automatic pneumatic hot roll laminator tailored for A3-sized documents. Engineered for precision and efficiency, it boasts a PLC control system with an LCD display, ensuring user-friendly operation and accurate control over the lamination process. The machine’s pneumatic pressure system guarantees consistent and high-quality lamination results.

Equipped with an overlap function, the SL-400A enhances productivity by allowing seamless lamination of consecutive sheets. Its robust design supports a maximum laminating width of 390mm and accommodates materials up to 7mm in thickness. The manual feed via conveyor belt combined with automatic separation streamlines the workflow, making it an ideal choice for businesses aiming to improve their document finishing processes.

Specifications:

• Max Laminating Width: 390mm
• Max Laminating Thickness: 7mm
• Max Laminating Speed: 7 meters per minute
• Temperature Range: 0?160?C
• Motor Power: 250W frequency conversion motor
• Roller Diameter: 110mm
• Control System: PLC with LCD display
• Pressure System: Pneumatic
• Feeding Method: Manual feed via conveyor belt with automatic separation
• Overlap Function: Yes
• Double-Sided Lamination: Optional
• Power Supply: Standard configurations apply
