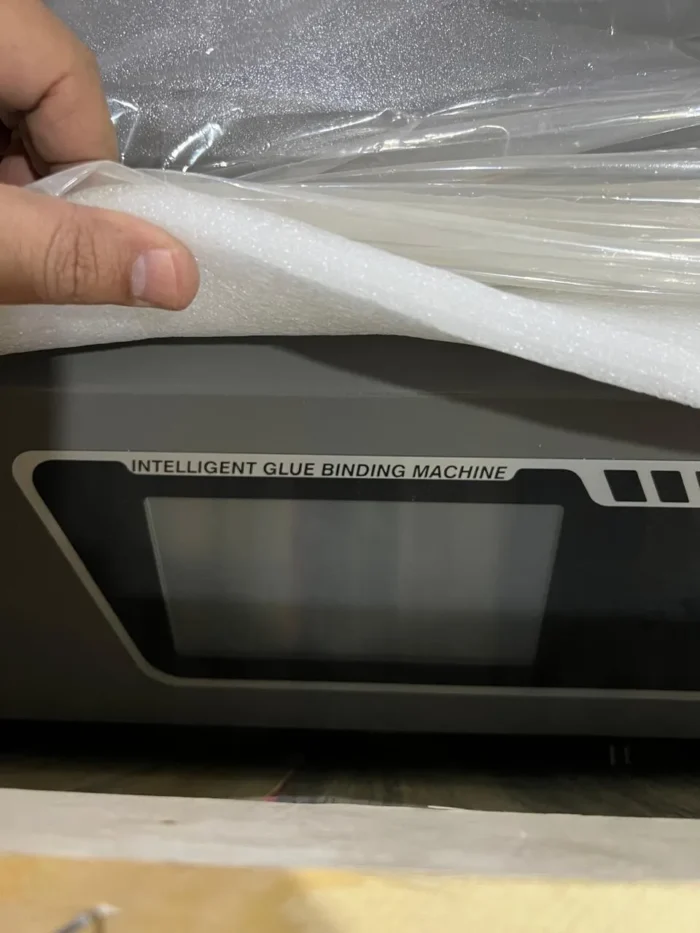

C70 Full Automatic Glue Binding Machine

C70 – Automatic new Glue Binding Machine – Up to 440 mm – Full-Automatic Binding Machine

The C70 Automatic Glue Binding Machine is a fully automatic hot-melt binder capable of binding thick book blocks up to 60 mm — ideal for manuals, books, brochures, and catalogs. With an A3-size capacity (up to 440 mm length), digital touch-screen controls, and fast cycle speed 200-300 books/hour, it offers excellent value for printshops seeking affordability and consistency.

0 People watching this product now!

The C70 is a compact yet powerful fully-automatic glue binding machine designed for efficient and consistent perfect binding. It is suited for small- to medium-scale binding operations — from books and catalogs to promotional brochures and corporate manuals. Its hot-melt glue system, side-glue option, and automatic feeding/clamping make it a practical, cost-effective choice for printshops.

Technical Specifications (manufacturer data)

Max binding length: 440 mm (suitable for A3/A4 book formats)

Max binding thickness: 60 mm

Production speed: ~ 200–300 books per hour (some sources: 250–350 books/hour)

Gluing system: Hot-melt adhesive, with side-glue function for stronger spine adhesion

Glue pot & rollers: Cast-aluminum glue tank; double rubber wheel gluing system for efficient and uniform glue application

Spine preparation: Built-in milling/cutting knives (sun-cutter + milling blades) to roughen spine before gluing for better adhesion

Automatic cover feeder & clamping table: Electric automatic clamp with digital display for thickness and spine shaping adjustment

User interface: 7-inch touch-screen control panel for easy operation and setup

Pre-heating time: ~ 25 minutes before first run

Power: ~ 1.9 kW (standard 220 V)

Machine dimensions: approx. 1000 × 590 × 1300 mm (compact footprint)
