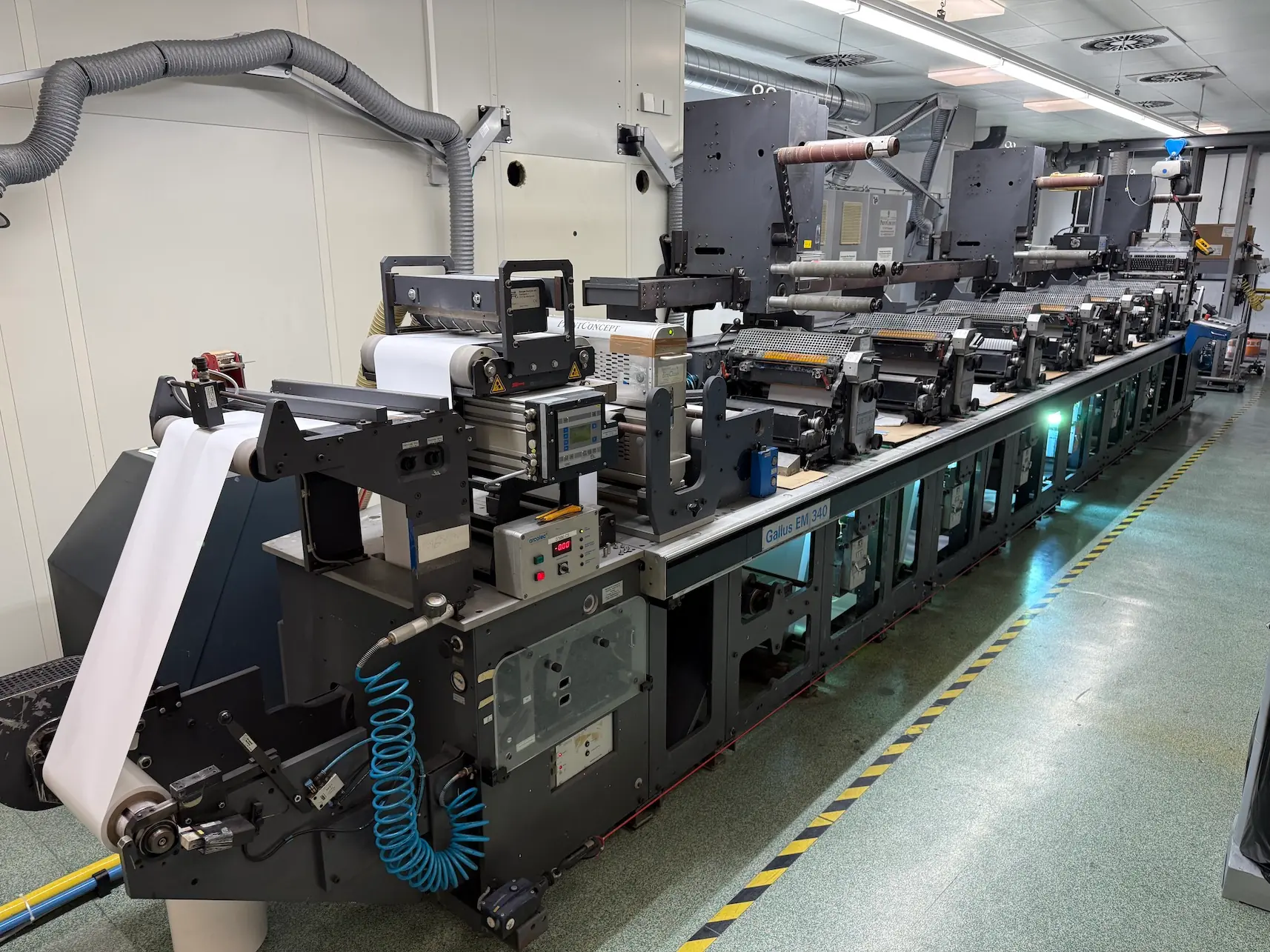

Gallus EM 340-6 + 1 Screen Unit – UV Flexographic Label Printing Machine – 2008

Gallus EM 340-6 UV Flexographic Press, manufactured in 2008, is a versatile narrow-web printing system engineered for labels, sleeves, and specialty packaging.
Equipped with 6 UV flexo printing units, 1 screen printing station, and cold foil and die-cutting capabilities, it provides superior flexibility for creative and high-value label production.

This model supports a maximum web width of 343 mm and a printing speed of up to 150 m/min, ensuring exceptional productivity and color accuracy.
The Corona treatment, dual web cleaning systems, and ELS CAN video inspection guarantee perfect print surfaces and quality control throughout the process.
Ideal for converters seeking reliability, modularity, and top-quality print output.

Technical Specifications:

• Model: Gallus EM 340-6 + 1 Screen Unit

• Year: 2008

• Type: UV Flexographic Label Printing Machine

• Manufacturer: Gallus (Switzerland)

• Max. Web Width: 343 mm

• Max. Printing Width: 337 mm

• Printing Length Range: 9 – 24 inch

• Performance Speed: 150 m/min

• Material Thickness: 80 – 180 µm

Main Equipment & Features:

• Control Panel: Movable touchscreen console

• Unwind Unit: Pneumatic lift with splice & web break detection

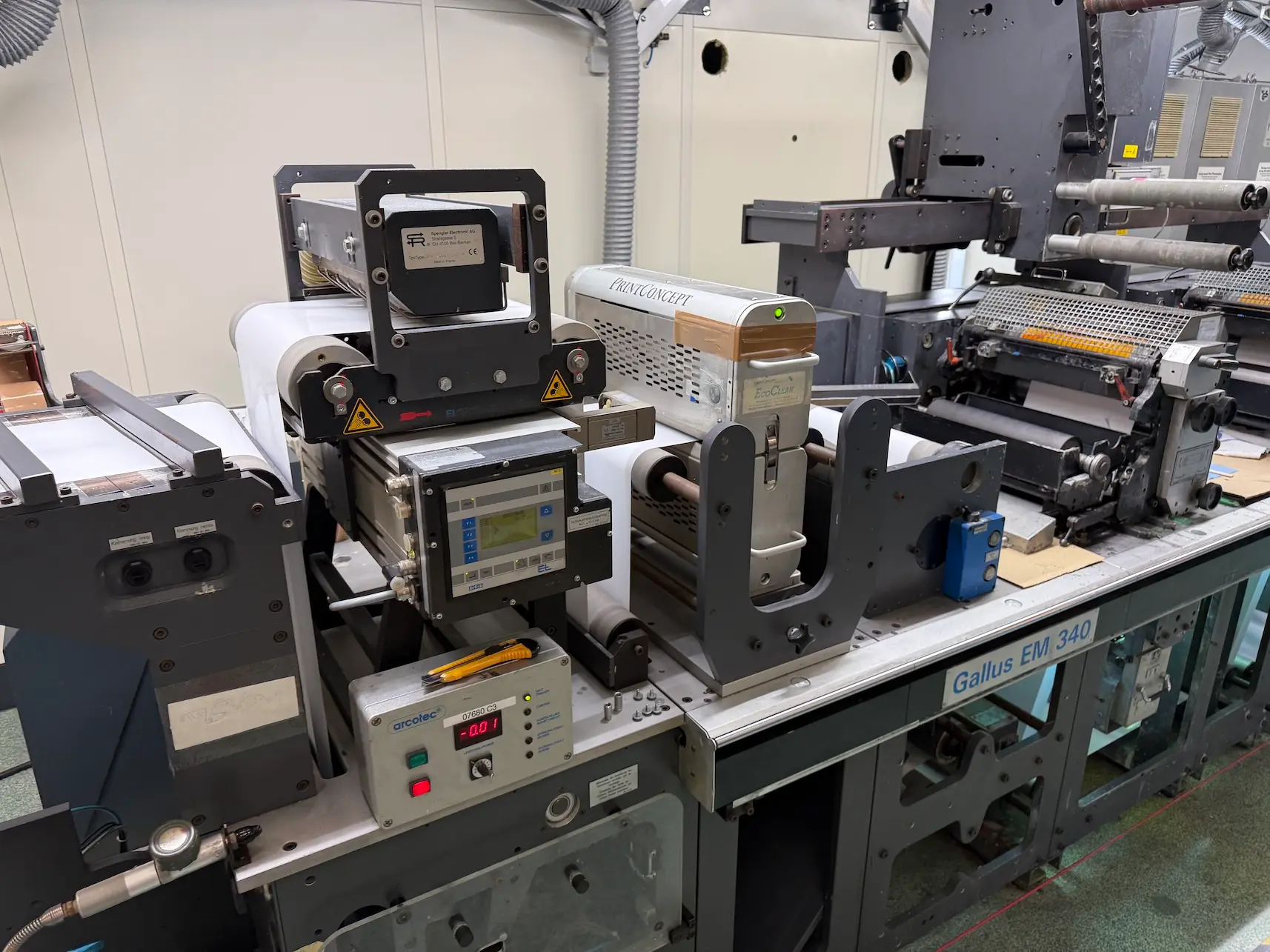

• Infeed Unit: Corona Treatment (Arcotec FEO)

• Web Cleaning: SPENGLER ORI 2000 + Printconcept system

• Rail System: Universal Rewinder + Matrix Rewinder

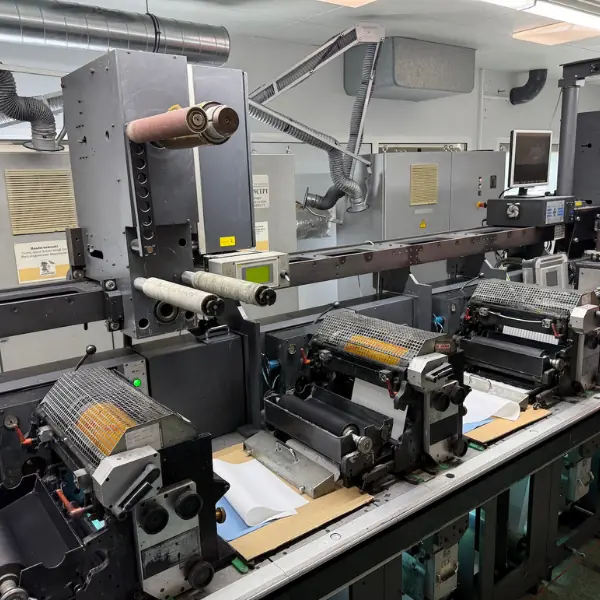

• Printing Units: 6 × Flexo (Easy Change System)

• Drying: 6 × UV Printconcept dryers + 6 Cooling Rollers

• Screen Printing Unit: 1 × integrated for special effects

• Cold Foil Unit: On rail for inline metallic decoration

• Die Cutting Unit: Integrated inline die station

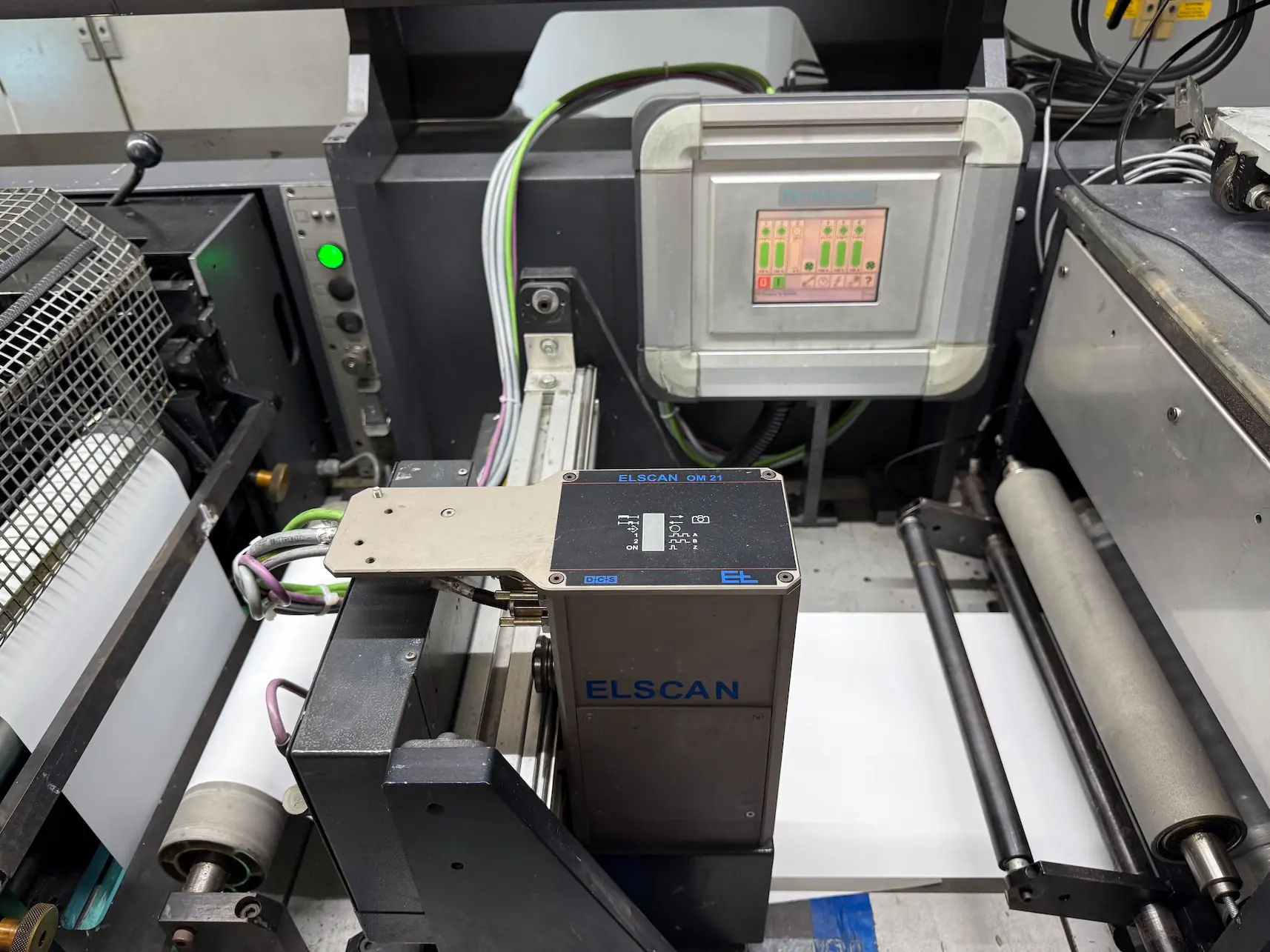

• Inspection: ELSCAN Web Video camera system

• Optional: Martin Automatic STR 05-13-24 Spinning Turret Rewind

• Condition: Excellent working order – ready for production

• Origin: Switzerland
