KAYM 48 E Paper Cutter 2022

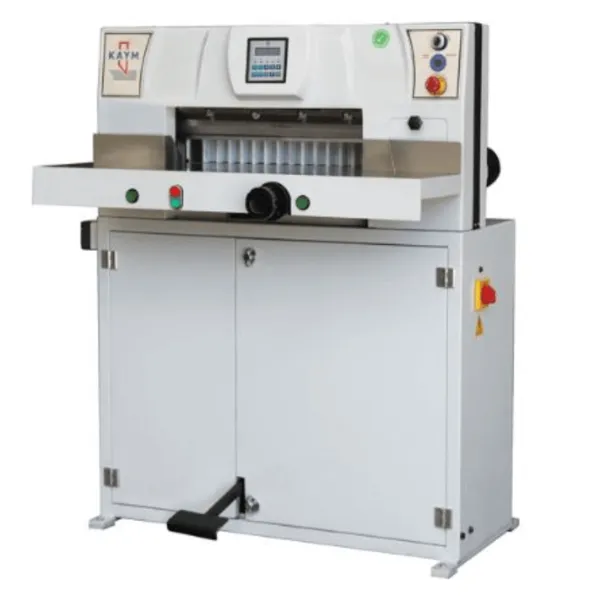

The KAYM 48 E is a professional single-knife guillotine paper cutting machine engineered for accurate and consistent trimming of printed materials. Manufactured by KAYM, this model is equipped with a digital coordinate measurement display that allows operators to control and monitor backgauge positioning with high precision.

Unlike three-knife trimmers, the KAYM 48 E operates as a single-knife guillotine cutter, ideal for cutting paper stacks, brochures, cardstock, and printed sheets. The machine features automatic backgauge movement via forward and backward buttons, as well as fine manual positioning using a hand-knob for sensitive adjustments.

Its chrome-plated stainless steel table ensures smooth material handling, while table illumination and cutting light line enhance operator visibility and cutting accuracy. The hydraulic clamping system with adjustable pressure, combined with an eccentric-driven cutting mechanism, delivers clean and stable cuts even during continuous operation.

Equipped with a double-hand safety button system, lockable main switch, and additional backgauge alignment and skewness removal system, the KAYM 48 E is designed to meet modern safety and productivity requirements in commercial printing and finishing environments.

Key Features

Modern industrial guillotine paper cutter
Single-knife cutting system

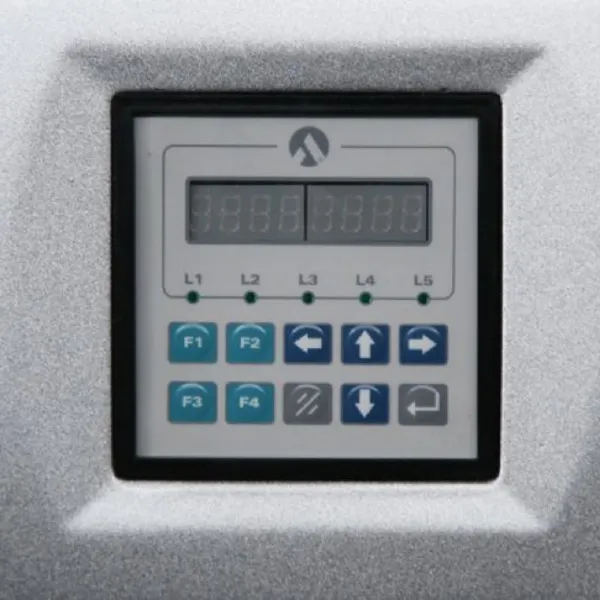

Digital coordinate measurement display
Automatic backgauge positioning (forward / backward)

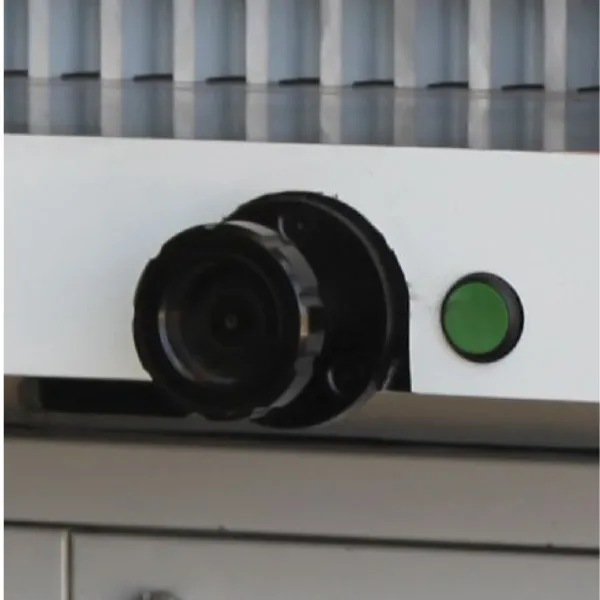

Manual fine adjustment via hand-knob
Chrome-plated stainless steel table
Table illumination and cutting light line
Hydraulic clamping with adjustable pressure
Eccentric-driven cutting system
Precision ball screw and linear guide
Double-hand safety button system

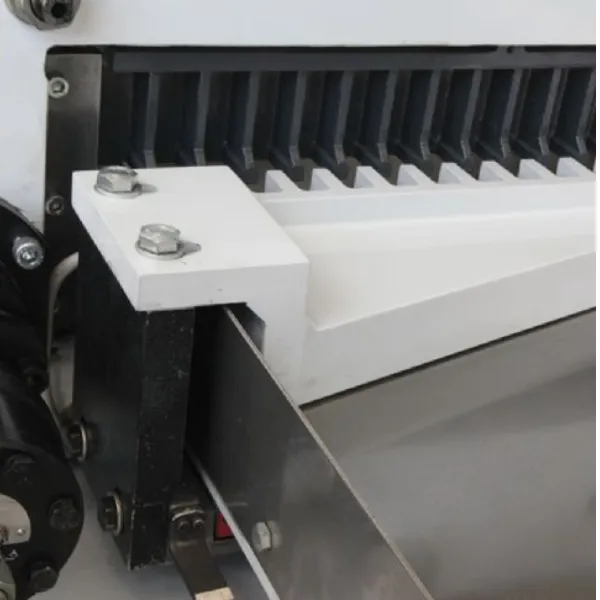

Backgauge angulation and skewness removal system

Technical Specifications

Manufacturer: KAYM
Model: 48 E
Machine Type: Guillotine / Paper Cutter
Control System: Digital coordinate measurement display
Year of Manufacture: 2022
Power Supply: 380 V / 50 Hz / 3-Phase
Table Surface: Chrome-plated (stainless steel)
Cutting System: Eccentric-driven, single knife
Clamping: Hydraulic, adjustable min–max pressure
Safety: Double-hand button system, lockable main switch

Applications

Precision trimming of printed sheets
Brochure and flyer cutting
Commercial print finishing
Bindery and post-press operations
Paper and cardstock cutting
