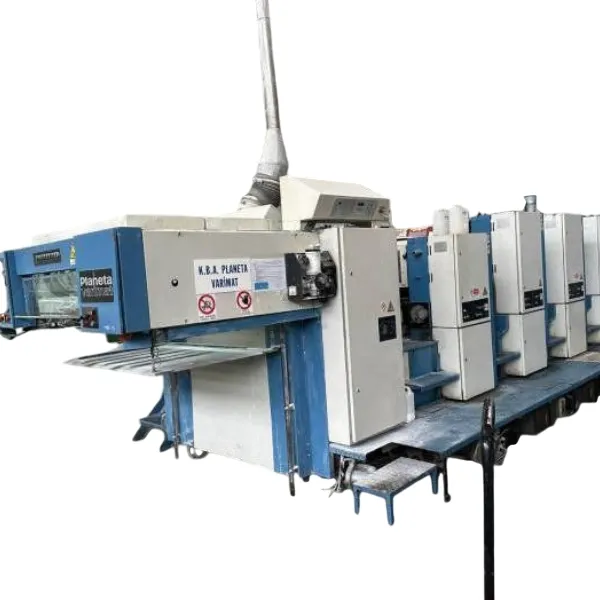

KBA Planeta 104-5 L Varimat Offset Printing Machine – 1992

The KBA Planeta 104-5 L Varimat (1992) is a large-format 5-color offset press engineered for commercial printing and carton packaging production. With a maximum sheet size of 1040 × 720 mm and printing area of 1020 × 710 mm, it delivers high productivity and versatility.

The machine is equipped with a coating unit and Eltosch hot air / IR drying tower, enabling efficient inline varnishing and fast drying for coated applications. The Varicontrol ink control system ensures precise axial and circumferential cylinder adjustment with job memory registration.

Additional systems such as Varidamp dampening, Baldwin blanket washer, Baldwin dampening system, ELTEX/Weko anti-static and anti-rejection device, and Non-stop feeder enhance print stability and production efficiency.

Supporting paper thickness from 0.04 mm up to 0.8 mm and paper weights between 60 and 600 gsm, this machine is suitable for both fine commercial work and carton board applications.

With 150 million impressions, this press remains a strong production solution for medium to high-volume print shops.

Key Features

5-color sheetfed offset press + coater
Maximum sheet size: 1040 × 720 mm
Printing area: 1020 × 710 mm
Hot air / IR drying system (Eltosch tower)
Varicontrol ink control table
Varidamp dampening system
Baldwin blanket washer
Baldwin dampening system
Non-stop feeder
Side feeder
Weko automatic anti-rejection device
Double electronic sheet control
4 oscillating rollers
Cardboard blowing device
Supports paper up to 600 gsm
Impression count: 150 million

Technical Specifications

Model: KBA Planeta 104-5 L Varimat
Manufacturer: KBA (Koenig & Bauer)
Year of Manufacture: 1992
Number of Colors: 5 + Coater
Maximum Sheet Size: 1040 × 720 mm
Minimum Sheet Size: 500 × 350 mm
Printing Area: 1020 × 710 mm
Paper Thickness: 0.04 – 0.8 mm
Paper Weight: 60 – 600 gsm
Drying System: Eltosch Hot Air / IR
Ink Control: Varicontrol
Dampening System: Varidamp + Baldwin
Feeder: Non-stop + Side feeder
Impression Count: 150 million

Applications

Commercial printing
Large-format brochures and catalogs
Packaging and carton printing
Coated print production
High-volume production runs
