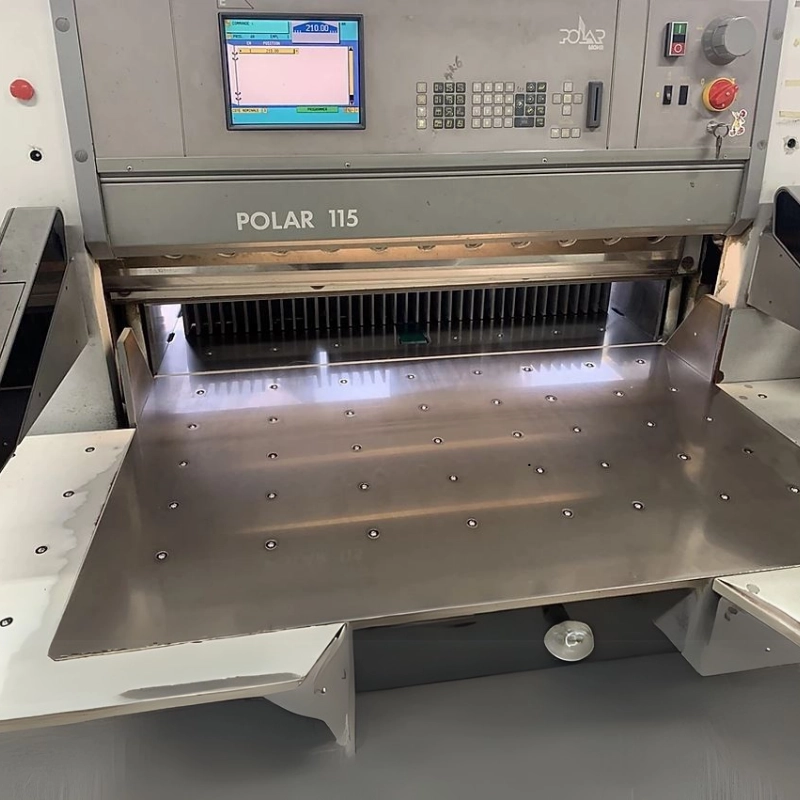

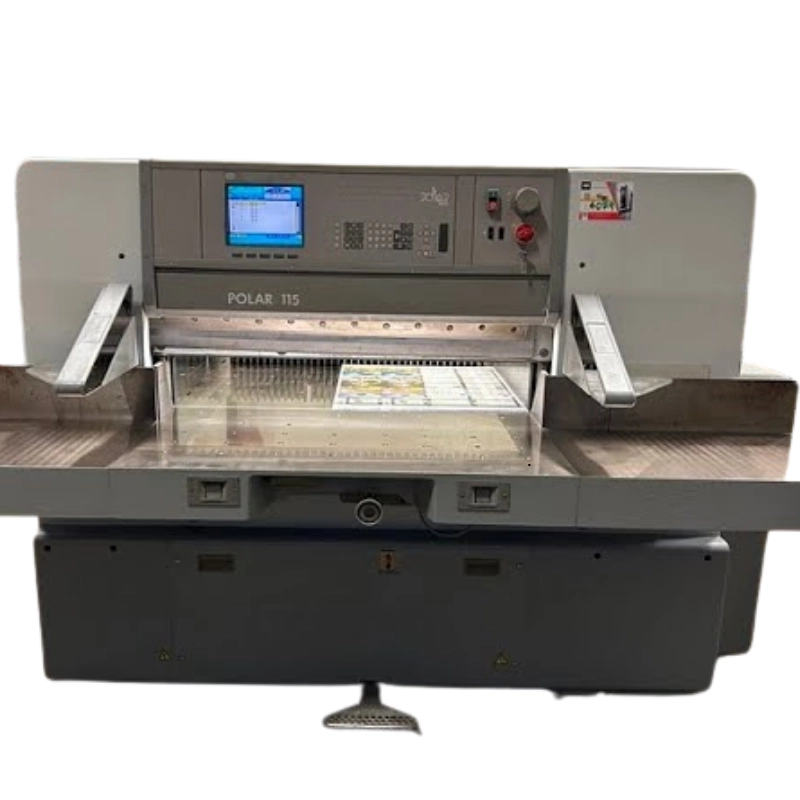

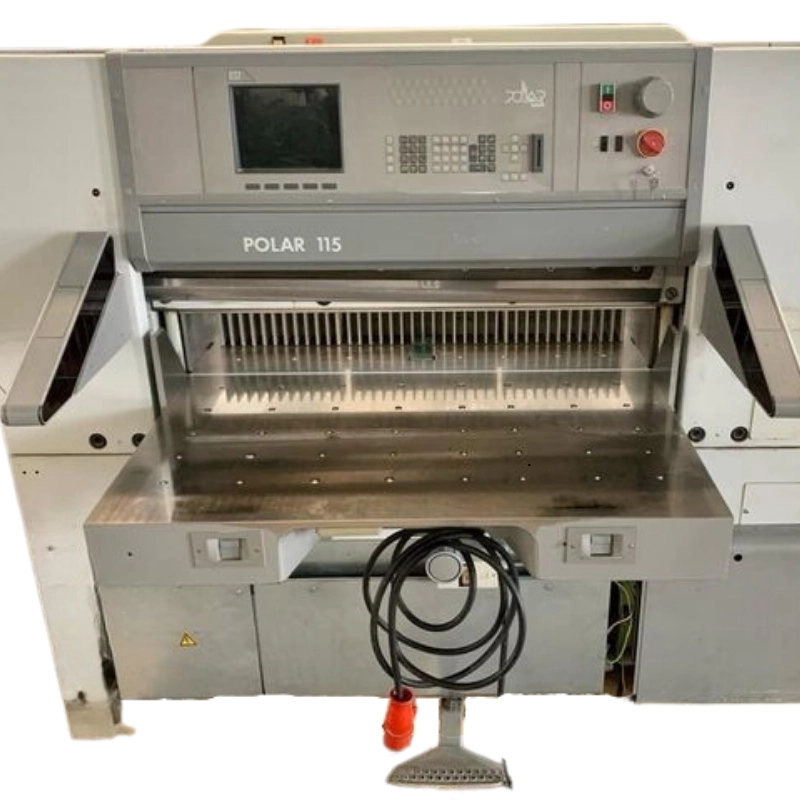

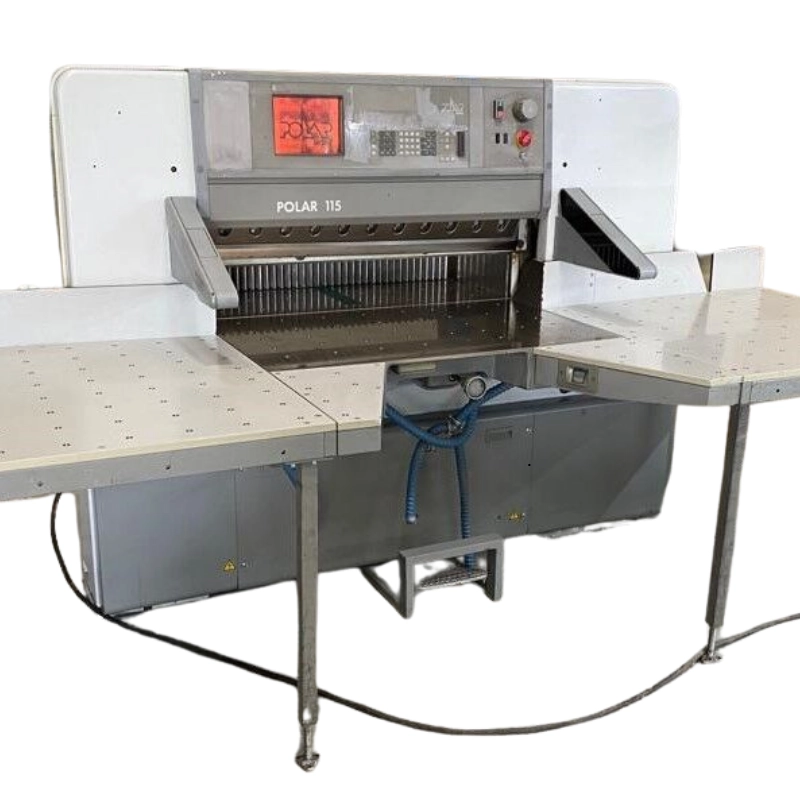

Polar 115 E Cutting Machine
Take your paper cutting operation to the next level with the Polar 115 E Guillotine — a formidable, reliable machine made for print shops demanding precision, speed, and durability. With a 45″ (115 cm) cutting width, air side tables, and safety sensors, it’s designed to handle heavy loads and deliver clean, professional results.
Add the Polar 115 E to your production line — inquire now!
Crafted by Polar Mohr in 1996, the Polar 115 E stands as a renowned programmable guillotine cutter tailored for high-volume print shops. It combines robust mechanics, hydraulic power, and digital control to consistently deliver precise cuts on heavy and diverse materials.
Key Features & Benefits:
- Wide Cutting Width: Up to 1150 mm (45.3″), ideal for large formats
- Deep Clamp Opening: Max of 165 mm (6.5″) for thick stacks
- Fast Knife Cycles: Approximately 42–45 cuts per minute for speedy throughput
- Air-Assisted Tables: Chrome-plated center and side tables minimize friction and ease paper movement
- Programmable Back Gauge: Double-speed back gauge with micro-adjustment for repeat precision
- Safety Systems: Light-beam guards, photocell knife barriers, two-hand operation & foot pedal enhance operator safety
- Quick Knife Exchange: Includes spare blade and hydraulic-assisted change system
- Durable Hydraulic Build: Robust HT250 cast iron frame with 4 kW motor, 380 V power
- Color Display Module: User-friendly interface with program memory and graphic feedback
Specifications:
| Parameter | Specification |
|---|---|
| Cutting Width | 1150 mm / 45.3″ |
| Clamp Opening | Up to 165 mm / 6.5″ |
| Stack Height | Feed depth 1150 mm |
| Knife Cycles | 42–45 cuts/min |
| Back Gauge Positioning | Double-speed with ±0.05 mm resolution |
| Clamp Pressure | 150–4500 daN |
| Table Height | 900 mm |
| Tables | Central and side tables with air cushion |
| Power Supply | 380 V, 4 kW main motor |
| Machine Dimensions | ~2650 × 2540 × 1650 mm |
| Weight | ~3200 kg |
| Safety & Extras | Photocells, light beam guard, spare knife, hydraulic knife changer, color monitor |
