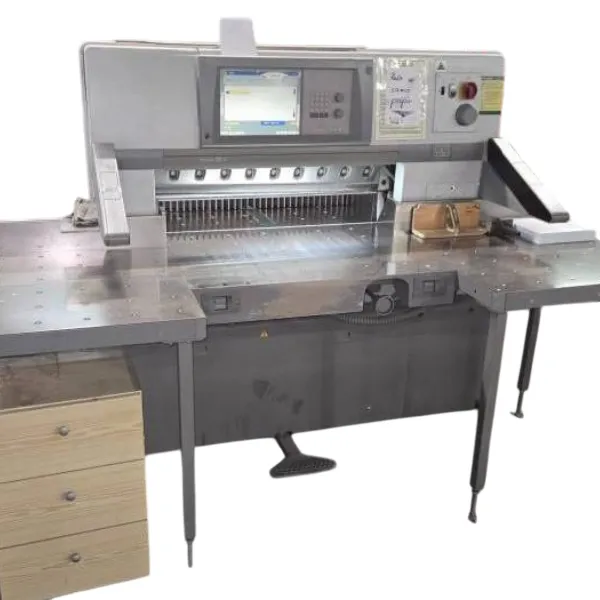

Polar 92 XT – Touchscreen – Hydraulic – 2006

The Polar 92 XT (2006) is a professional-grade hydraulic guillotine cutter designed for medium to high-volume finishing operations.

With a maximum cutting width of 920 mm and feeding depth of 920 mm, this machine is ideal for commercial print shops, packaging converters, and finishing departments handling brochures, books, forms, cartons, and other printed materials.

The 15-inch color touch-screen interface allows intuitive programming and operation, enabling operators to store and execute cutting programs efficiently. The powerful hydraulic clamping system provides adjustable pressure from 150 daN up to 3,500 daN, ensuring secure material positioning and precise cuts.

With a knife speed of up to 45 cycles per minute and backgauge speed of 200 mm/sec, the Polar 92 XT offers excellent productivity while maintaining high safety and accuracy standards.

Built with the well-known German Polar engineering quality, this cutter remains a highly reliable and durable finishing solution.

Key Features

Hydraulic paper cutting machine

Maximum cutting width: 920 mm

15-inch color touch-screen control

Programmable backgauge

Knife speed up to 45 cycles/min

High clamping pressure (150 – 3,500 daN)

Precise and stable cutting performance

German engineering reliability

Technical Specifications

Model: Polar 92 XT
Manufacturer: Polar
Year of Manufacture: 2006
Maximum Cutting Width: 920 mm
Feeding Depth: 920 mm
Maximum Loading Height: 130 mm
Knife Speed: 45 cycles/min
Smallest Automatic Cut (without false plate): 25 mm
Smallest Automatic Cut (with false plate): 90 mm
Clamp Pressure Range: 150 – 3,500 daN
Backgauge Speed (return): 200 mm/sec
Machine Weight: Approx. 2,000 kg
Machine Dimensions (W × D): 1,770 × 2,030 mm
Power Supply: 380V – 3 Phase – 50Hz
Control System: 15” Color Touch-Screen

Applications

Commercial print finishing
Book and brochure trimming
Forms and stationery cutting
Packaging and carton trimming
Digital print finishing
Medium to high-volume cutting jobs
