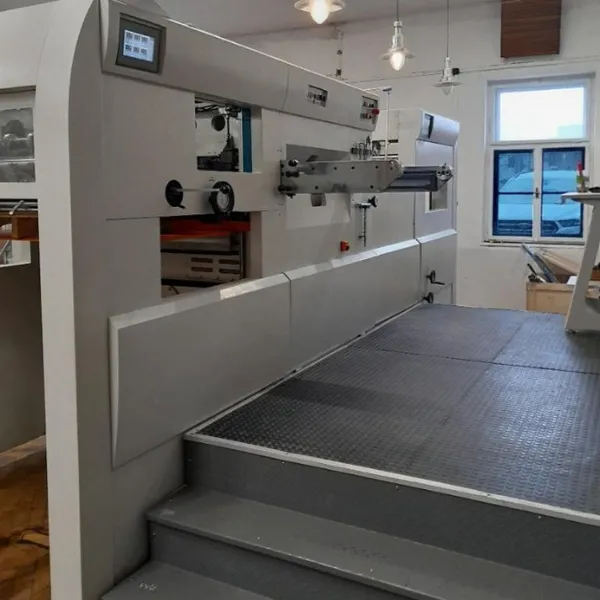

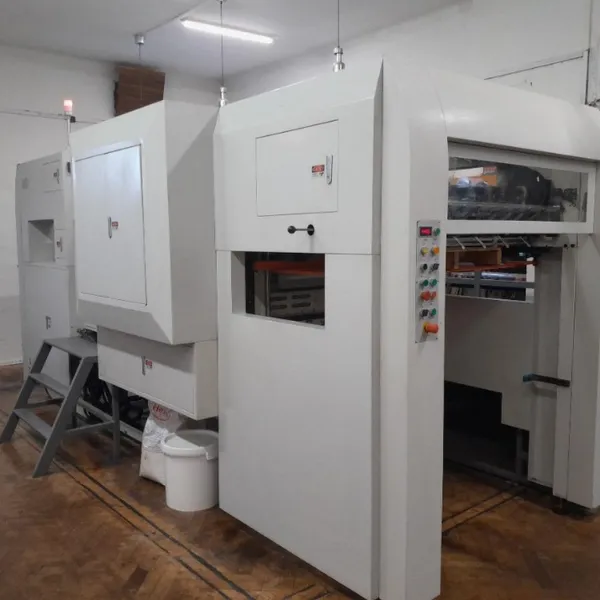

RUIYANG MHC-1060R AUTOMATIC DIE CUTTING MACHINE 2014

The Ruiyang MHC-1060R Automatic Die Cutting Machine is engineered for precise die cutting of paper, cardboard, and packaging materials. Manufactured by Rui’an Jingsai Printing Machine Co., Ltd, this machine features a solid mechanical structure combined with modern control systems to ensure high accuracy and consistent cutting results.

With a maximum sheet size of 1060 × 760 mm and a maximum cutting format of 1040 × 720 mm, the MHC-1060R is suitable for a wide range of packaging and commercial print applications. The machine supports materials from 80 to 600 g/m² and provides excellent cutting accuracy up to ±0.1 mm. Its high feeder and delivery stack capacity enhances production efficiency, while the reliable mechanical design ensures long-term industrial performance.

Key Features

High-precision automatic die cutting system
Stable mechanical structure for continuous operation
Accurate cutting with tolerance up to ±0.1 mm
Wide material range from light paper to heavy board
High feeder and delivery stack capacity
Designed for industrial-scale packaging production

Technical Specifications

• Manufacturer: Rui’an Jingsai Printing Machine Co., Ltd
  Production Year: 2014
  Machine Type: Automatic Die Cutting Machine
  Maximum Sheet Size: 1060 × 760 mm (41.7″ × 29.9″)
  Maximum Cutting Format: 1040 × 720 mm
  Maximum Plate Size: 1080 × 745 mm
  Gripper Edge: 9 – 17 mm
  Material Range: 80 – 600 g/m²
  Feeder Stack Height (incl. pallets): 1600 mm
  Delivery Stack Height (incl. pallets): 1400 mm
  Machine Power: 16 kW
  Cutting Accuracy: ±0.1 mm

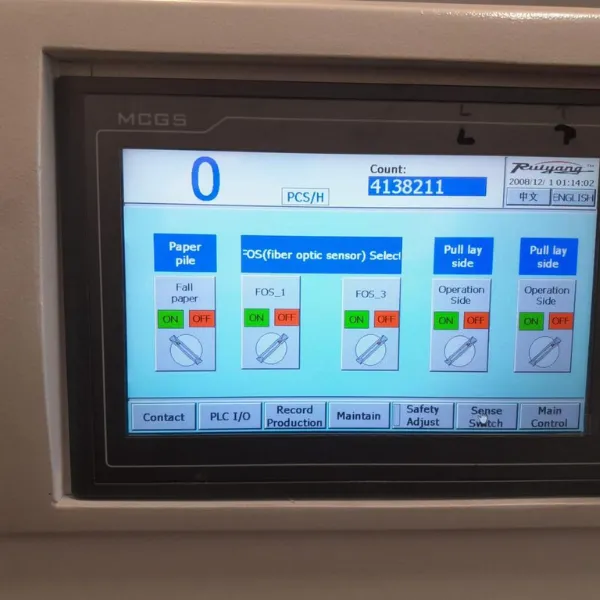

  Counter: 4,138,211 sheets

Applications

• Paper and cardboard die cutting
  Carton and packaging production
  Commercial print finishing
  Box and packaging components
  Industrial die cutting operations
