Horizon VAC-100A Collator with ST-20 Delivery – 10 Bins – 2009

Horizon VAC-100A Collator with ST-20 Delivery Unit is a trusted, high-precision system for automatic sheet collation and stacking.
Built for long-term performance, it features a suction rotor feeding system that ensures smooth, error-free feeding across different paper sizes and weights.
The ST-20 automatic stacker efficiently collects collated sets, offsets them for easy separation, and unloads stacks directly onto a pallet — supporting uninterrupted operation with minimal operator effort.

This combination guarantees exceptional productivity, consistent output, and flexible operation, making it ideal for digital and offset finishing lines.

Technical Specifications:

VAC-100A Collator:

• Number of Bins: 10 bins per tower

• Feeding System: Suction Rotor Feeding System

• Expandability: Up to 6 towers (60 stations)

• Max Sheet Size: 350 (W) × 500 (L) mm (13.77″ × 19.68″)

• Min Sheet Size: 148 (W) × 148 (L) mm (5.83″ × 5.83″)

• Sheet Weight Range: 52 – 208 gsm

• Bin Pile Height: Max 55 mm (2.2″)

• Sheet Overlap: 4 Steps

• Collating Interval: Automatic and Variable Setting

• Production Speed:
  – Up to 9,900 sets/hour (A5 LEF)
  – Up to 8,900 sets/hour (A4 LEF)

• Program Modes: Double Cycle / Dual Cover Feed / Preset Tabbing

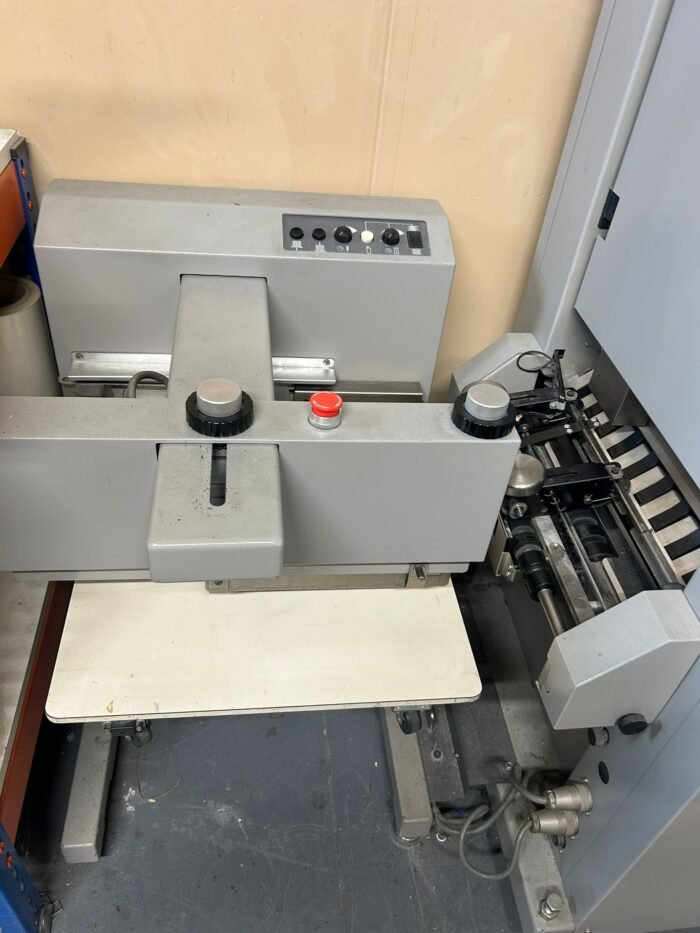

ST-20 Stacker Delivery Unit:

• Type: Automatic offset stacking tray

• Function: Lateral offset separation for each collated set

• Unloading System: Direct unloading to wheeled pallet

• Operation: Auto-restart upon stacker return to home position

• Production Speed: Matches collator speed (up to 9,900 sets/hour)

Condition: Good working order – Available immediately
Origin: Japan
