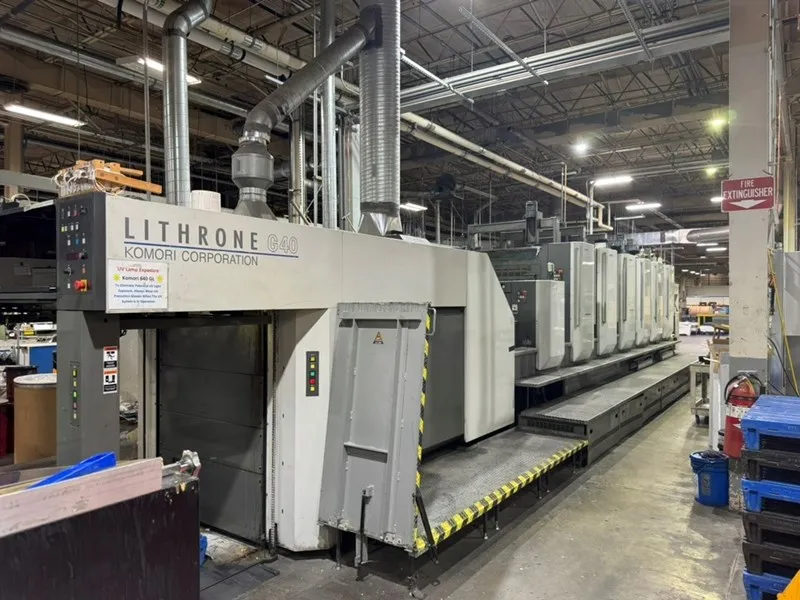

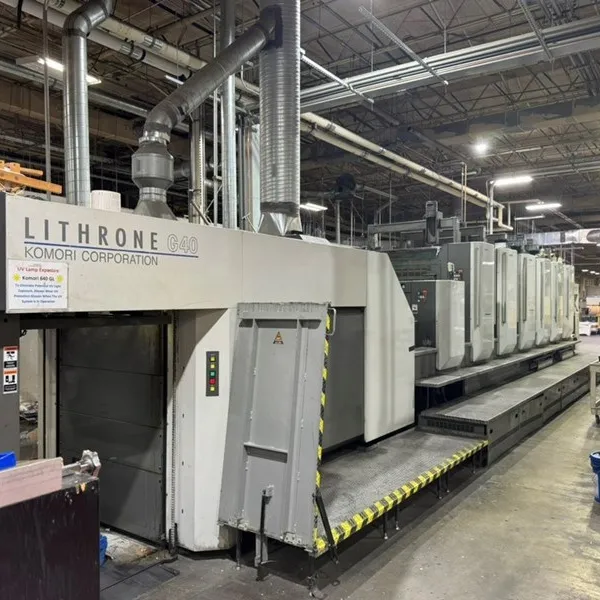

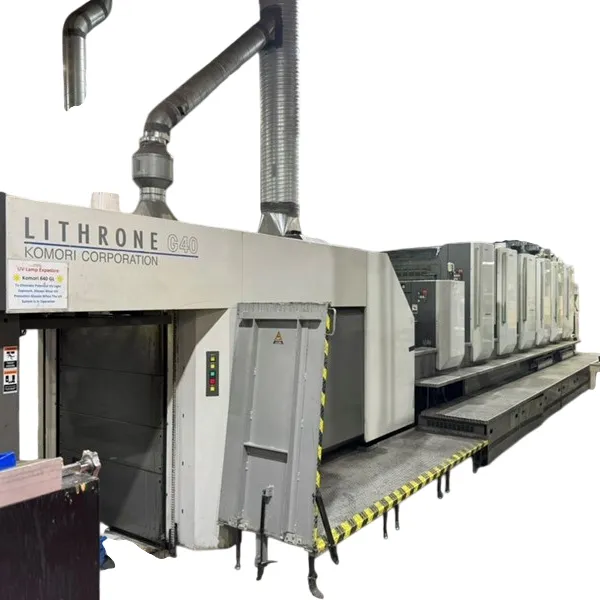

Komori GL 640 C Hybrid UV Offset Printing Machine 74 × 104 cm – 2012

The Komori GL 640 C Hybrid UV (2012) is a premium 6-color sheetfed offset printing machine with inline coating and hybrid UV curing system, designed for high-end packaging and commercial production.

With a maximum sheet size of 740 × 1040 mm (B1 format), the machine is ideal for folding cartons, cosmetics packaging, and high-quality print applications.

The press is equipped with advanced control systems including:

PQC Ink Console
PDC-SX closed-loop density control
KMS-IV production management system

The AMR preset system enables automatic setup for sheet size and thickness, reducing makeready time.

The machine features Komorimatic Delta dampening system with cooling and ink temperature control, ensuring stable print quality.

It includes a chambered anilox coating unit, allowing high-quality coating applications.

The Hybrid UV system includes:

2 movable AMS interdeck UV lamps
UV lamps in delivery
IR drying system

This enables:

Instant curing
Printing on non-absorbent materials
Premium gloss and special effects

Additional features include:

SAPC plate change system
Automatic wash-up systems
Non-stop feeder and delivery
Suction belt feeder
Powder spray system

With approximately 220 million impressions, the machine is a strong production asset.

👉 Currently dismantled – ready for shipment and installation

Key Features

6-color sheetfed offset printing machine
Hybrid UV curing system
Inline anilox coating unit
B1 format (740 × 1040 mm)
PQC + PDC-SX + KMS-IV systems
AMR automatic make ready
SAPC plate change system
IR + UV drying
Non-stop production systems

Technical Specifications

Model: GL 640 C Hybrid UV
Manufacturer: Komori
Year of Manufacture: 2012

Number of colors:
6 colors

Impression count:
Approx. 220 million

Maximum sheet size:
740 × 1040 mm

Control systems:
PQC / PDC-SX / KMS-IV

Plate system:
SAPC

Dampening system:
Komorimatic Delta

Cooling system:
Recirculating cooling

Coating system:
Anilox Chamber Coater

UV system:
AMS Hybrid UV

Drying system:
UV + IR

Applications

Luxury packaging (cosmetics, pharma, food)
Plastic & synthetic materials
Folding cartons
Commercial printing
UV special applications
